Description
Our MV-2404.1 product is temporarily discontinued and is currently unavailable.
MV.2404.1
$437.50

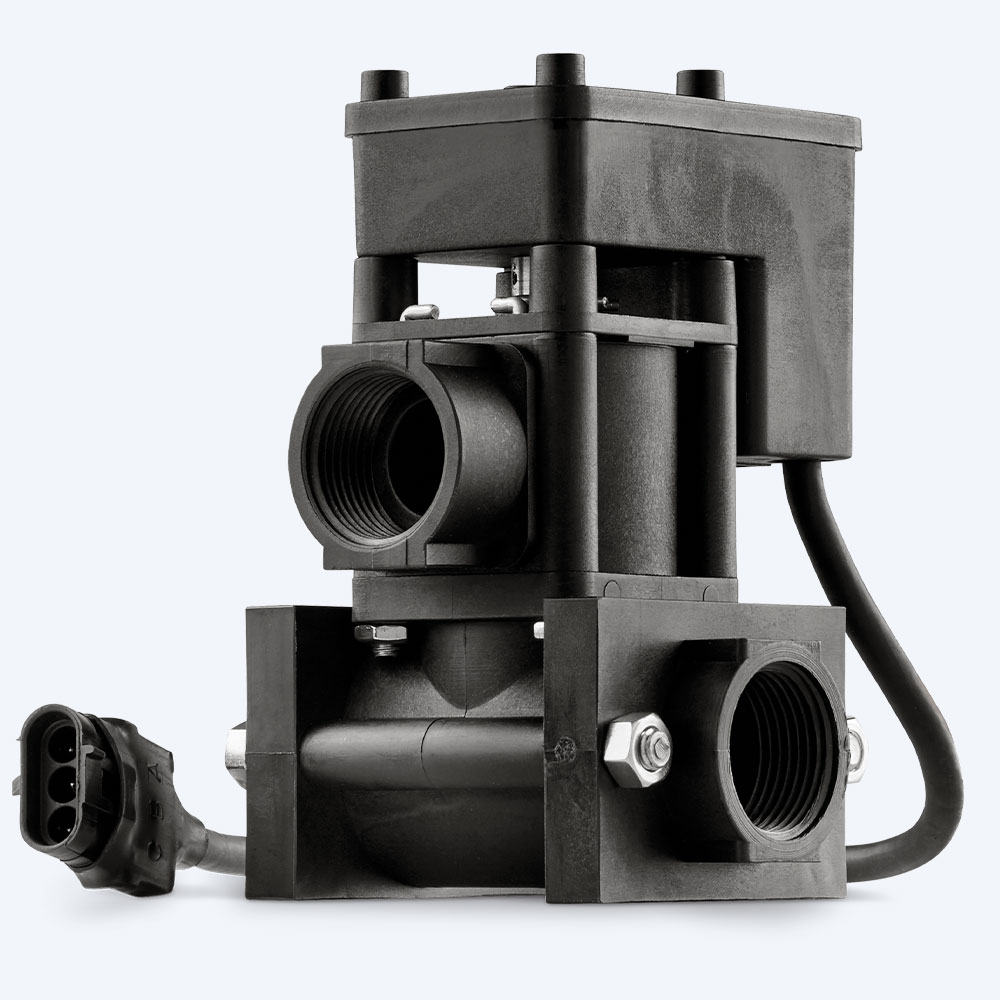

20 GPM 150 PSI 1″ NPT 12V 2.5 AMP 2-Way Motorized Valve with 3 Pin Weather-Pack Connector on 12″ Cable for Manifold Assemblies – Stackable
Out of stock
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 10 × 10 × 9 cm |
| Valve Type | 2-Way Direct Operating |
| Flow Type | High Flow |
| Output | 0-20 GPM |
| Maximum Pressure | 150 PSI |
| Power Connection Type | Weather-Pack 3 Pin Shroud on 12" Cable |
| Voltage | 12 Volt D.C. |
| Pressure Drop | 5 PSI at 20 GPM |
| STD. Current Draw | 2.5 AMPs |
| CV Rating | 8.94 |
| Valve Housing | Glass-Filled Nylon 6/6 |
| Wetted Metal Parts | 303 SS |
| Coil | N/A |
| Diaphragm/Seat/Seals | Seals & O-Rings – Viton |
| Ball and Shaft Seals | None |
| Inlets | 1" NPT Inlet End Plates | 1.5" NPT Inlet End Plates Available | Blank End Plates Available |
| Outlets | 1" NPT Side |
| Manifold | Manifold Stackable – Up to 5 Valves |
